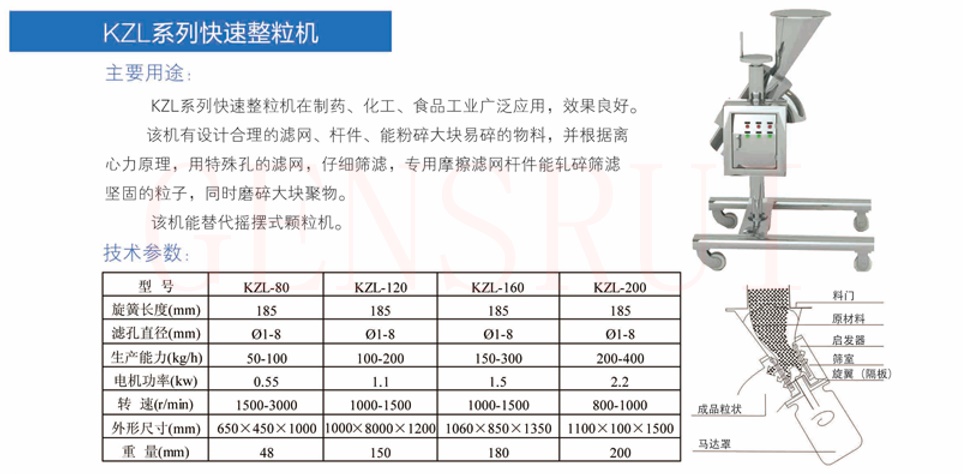

Main application: The KZL series rapid granulator is widely used in the pharmaceutical, chemical, and food industries with good results. This machine has a well-designed filter screen, rod, and can crush large and fragile materials. Based on the principle of centrifugal force, a special hole filter screen is used to carefully screen and grind solid particles while grinding large aggregates. This function can replace the swing pellet machine.
model | throughput | Length of rotary spring | Filter hole diameter | Motor power | speed | Dimensions (length x width x height) | weight |
---|---|---|---|---|---|---|---|
KZL-80 | 50-100kg/h | 185mm | Ø1-8mm | 0.55kw | 1500-3000r/min | 650*450*1000mm | 48kg |
KZL-120 | 100-200kg/h | 185mm | Ø1-8mm | 1.1kw | 1000-1500r/min | 1000*8000*1200mm | 150kg |
KZL-160 | 150-300kg/h | 185mm | Ø1-8mm | 1.5kw | 1000-1500r/min | 1060*850*1350mm | 180kg |
KZL-200 | 200-400kg/h | 185mm | Ø1-8mm | 2.2kw | 800-1000r/min | 1100*100*1500mm | 200kg |
Main application: The KZL series rapid granulator is widely used in the pharmaceutical, chemical, and food industries with good results. This machine has a well-designed filter screen, rod, and can crush large and fragile materials. Based on the principle of centrifugal force, a special hole filter screen is used to carefully screen and grind solid particles while grinding large aggregates. This function can replace the swing pellet machine.
